Pilot Testing Support Services
Point Source supports environmental engineering firms in need of pilot testing services for vapor-mitigation system design. We provide and configure equipment for your project, including controls, hoses, fittings, meters, and gauges. All delivered and set up at your site.
We offer this service ala carte and, upon request, locate a technician on-site throughout the entire testing process to monitor and re-configure the system as needed. In this scenario, we are available to collect data and samples.

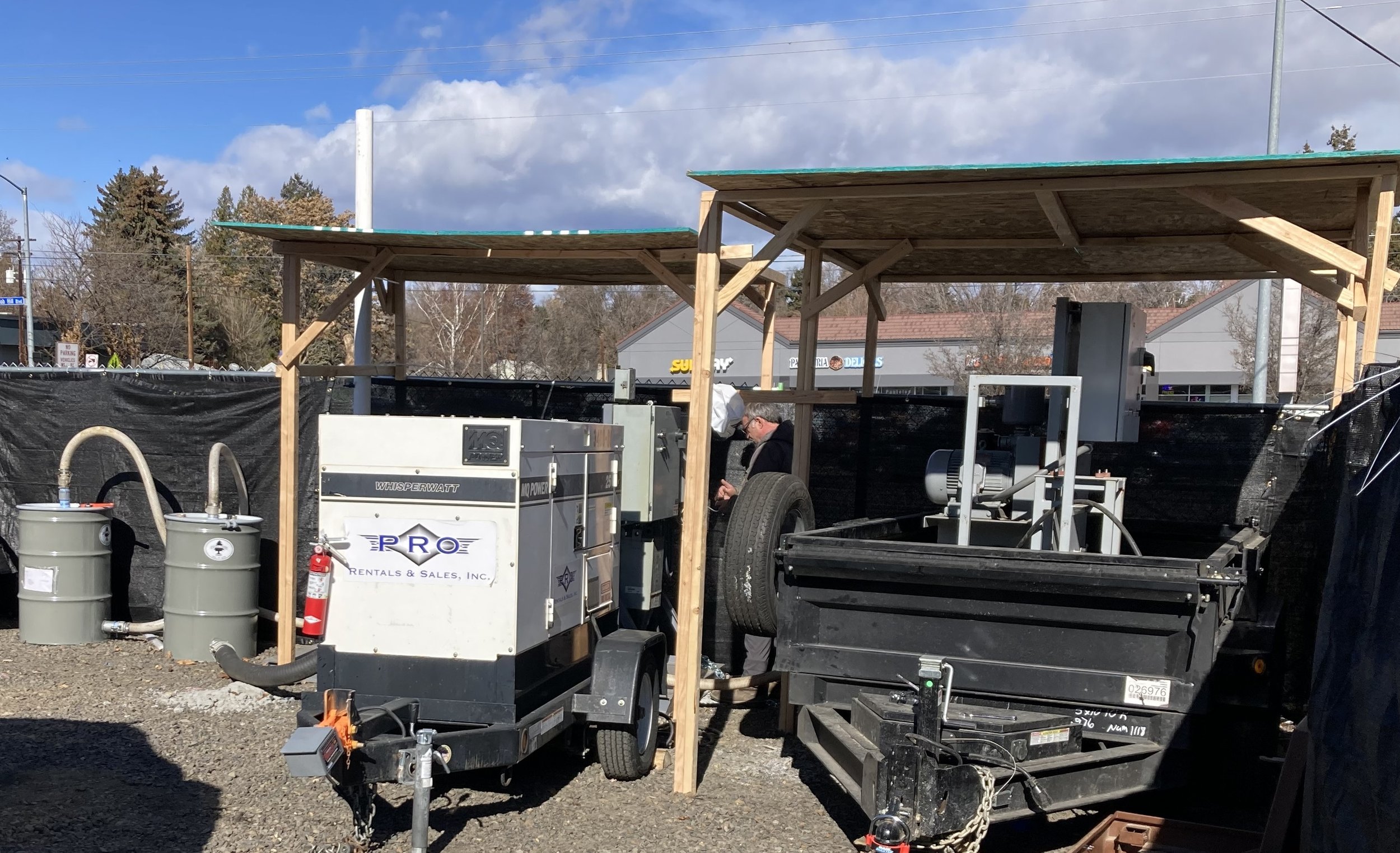

Two skid-mounted systems on a flatbed trailer that remains on site is a typical arrangement. One system provides higher vacuum and lower flow, and the other provides lower vacuum and higher flow. These options allow flexibility and redundancy. Specifications for each system are listed below.
Roots URAI-32
10hp Leeson motor
VFD controlled
Max vacuum 218 in H2O
Max flow 220 SCFM
480 volt 3-Phase input
Ametek Rotron EN85872WL blower/motor combination
VFD controlled
Max vacuum 80 in H2O
Max flow 380 SCFM
480 volt 3-Phase input
We provide flow meters, vacuum gauges, hosing, knockout tank, carbon filters, etc as needed. A diesel generator is available for sites without 480 volt 3-phase service.
Please contact us with your specific requirements and we will be happy to provide a quote.
